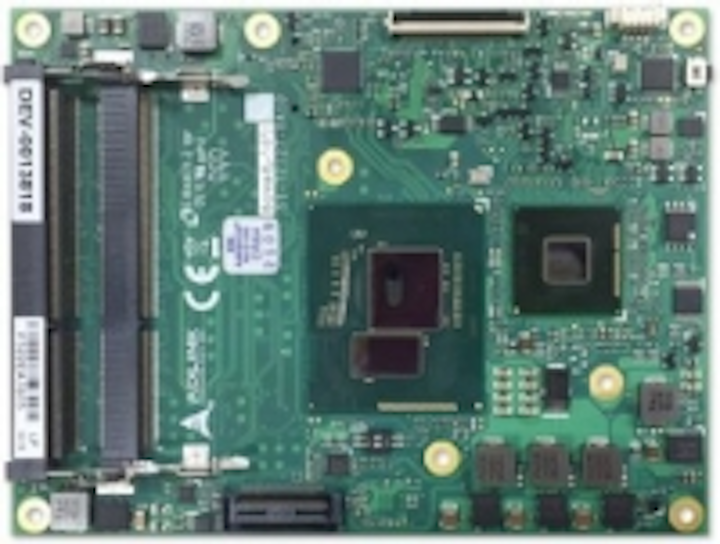

COM Express module from ADLINK features 5th general Intel core processor

Based on 5th generation Intel Core processors i7-5850EQ and i7-5700EQ (H-processor line), the Express-BL COM Express Basic Type 6 module from ADLINK is targeted at military, transportation, and industrial automation applications.
June 12, 2015
2 min read

Based on 5th generation Intel Core processors i7-5850EQ and i7-5700EQ (H-processor line), the Express-BL COM Express Basic Type 6 module from ADLINK is targeted at military, transportation, and industrial automation applications. The Express-BL features up to 16GB dual channel DDR3L at 1600MHz, two DDI channels (up to 4K resolution) and one LVDS channel supporting three independent display, as well as optional Embedded DisplayPort, which supports next generation displays. The COM Express module’s I/O includes 7 PCIe x1, one PCIe x16, 1 GigE, 4 SATA 6 Gb/s, 4 USB 3.0, and 4 USB 2.0 ports. In addition, the Express-BL is equipped with ADLINK’s Smart Embedded Management Agent (SEMA) to provide access to detailed system activities at the device level.

To Learn More:

Contact: ADLINK Technology, Inc.
Headquarters: San Jose, CA, USA
Product:
Express-BL COM Express module
Key Features: Intel Core processors i7-5850EQ and i7-5700EQ, 7 PCIe x1, 1 PCIe x16, GigE, 4 USB 3.0, 4 USB 2.0, and Smart Embedded Management Agent functions.

What ADLINK says:
View more information on the Express-BL.
