Dual visible and thermal sensor targets use in drones and robots

Jan. 7, 2021
Designed for OEM use, the new module is suited for integration in industries from commercial drones to industrial imaging systems.

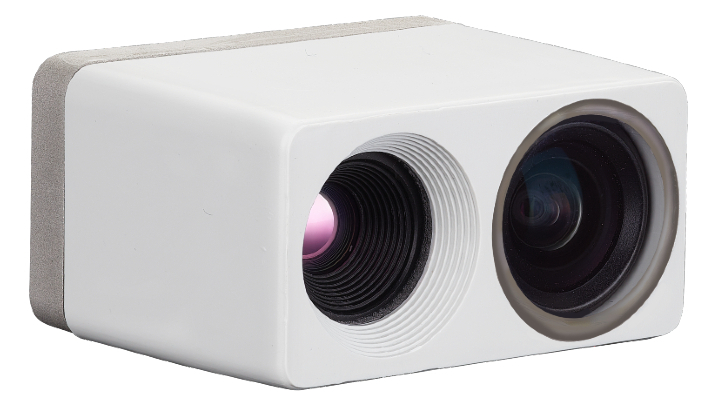

Equipped with a 12 MPixel camera, Boson thermal camera with shutter, and an inertial measurement unit, the FLIR Hadron SWaP+C optimized RGB/Thermal module can operate at up to 60 Hz. The unit measures 24 x 45 x 36 mm and weighs 42.8 g with an operating temperature range of -20° to 60°C. The IR camera sensor features Boson 320 x 256 pixels with optics exhibiting a 6.3 mm EFL, 34° HFOV and an F# of 1.0.

The EO camera sensor is a Sony IMX412 CMOS sensor with 4056 x 3040 pixels, a 1.55 µm pitch and a 4-lane MIPI interface. Designed for OEM use, it is suited for integration in industries from commercial drones to industrial imaging systems.

GET PRICING

To Learn More:

Contact: FLIR Systems
Headquarters: Wilsonville, OR, USA
Product: Hadron SWaP+C optimized RGB/Thermal module
Key Features: 25 x 45 x 36 mm footprint, 42.8 g, -20° to 60° C operating range, Boson thermal camera,Sony IMX412 CMOS sensor for RGB imaging.

What FLIR Systems says:
View more information on the Hadron SWaP+C optimized RGB/Thermal module.
