Miniature bar light delivers more than 100,000 lux

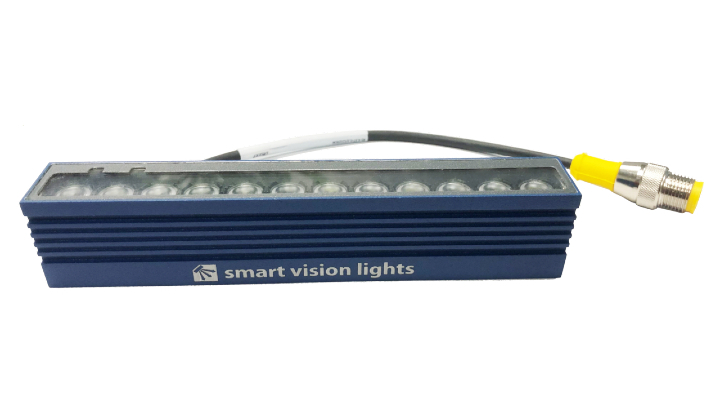

The LM150 miniature LED light offers a range of working distances from 50 to 2000 mm and can deliver more than 100,000 lux. A 5-pin M12 disconnect allows simple wiring. Overcurrent protection can be enabled/strobed with PNP or NPN inputs.

Five lens choices can modify the light into five different patterns, ranging from 16° narrow to 80° wide or line lens. Standard wavelength choices are white 6200K, 470 nm (blue), 530 nm (green), 625 nm (red), and 850 nm (NIR). The light is 141 mm in length and according to the manufacturer is ideal for darkfield applications.

GET PRICING

To Learn More:

Contact: Smart Vision Lights
Headquarters: Norton Shores, MI, USA
Product: LM150 miniature LED light
Key Features: 50 to 2000 mm working distance, five patterns, five wavelength choices.

What Smart Vision Lights says:
View more information on the LM150 miniature LED light.
