Time-of-Flight Camera Featuring On-Camera High Dynamic Range

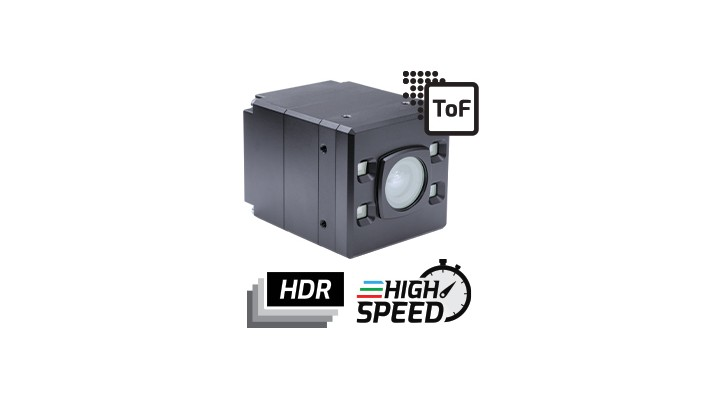

Helios2+ is an advanced version of the Helios2 ToF camera offering two new on-camera depth processing modes: High Dynamic Range Mode (HDR) and High-Speed Mode. The HDR Mode combines multiple exposures in the phase domain to provide accurate depth information in high contrast, complex scenes, containing both high and low reflectivity objects. The High-Speed Mode enables depth perception using a single-phase measurement, allowing for faster acquisition speed and higher frame rates compatible with moving object perception. Helios2+ integrates Sony’s DepthSense™ IMX556PLR back-illuminated ToF image sensor and uses four 850nm VCSEL laser diodes. The camera delivers 640 x 480 depth resolution at up to an 8.3m working distance and a frame rate of 30 fps in standard mode. In High-Speed Mode the Helios2+ camera can run up to 103 fps at 2.5m distance.
To Learn More:
Contact: LUCID Vision Labs, Inc.
Headquarters: Richmond, BC, Canada
Product: Helios2+ ToF Camera
Key Features: Two on-camera depth processing modes; Sony DepthSense IMX556PLR ToF image sensor; 640 × 480 depth resolution.
What LUCID Vision Labs, Inc. says:
View more information on the Helios2+ ToF Camera
