High-Speed 3D Sensor

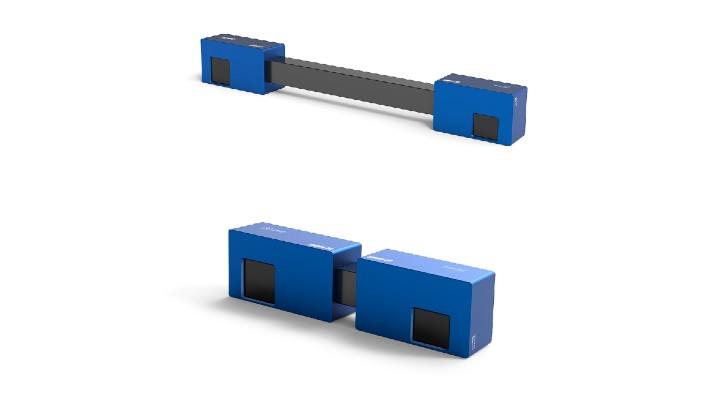

Swing3D built with high-speed 3D sensor, can easily and quickly acquire 3D data for various applications including bin picking and robot vision. It offers a high-speed CMOS sensor paired with rotating line laser module. Swing3D is equipped with an FPGA and DSP, allowing real-time data acquisition, and it supports GenICam and GigE interfaces. Its long measuring range in the Z-axis allows easy 3D data acquisition even with larger optics. There are two models: the S-Model and the L-Model. Both offer resolution of 1280 × 1024 pixels, greater than 1.3 million 3D points, global shutter, and 2/3-in. sensor size. Both models have standard GenICam interface and rotating line lasers that allow 3D scans from fixed positions.
To Learn More:
Contact: Novitec
Headquarters: Seoul, South Korea
Product: Swing3D
Key Features: GenICam and GigE interface support; rotating line lasers; resolution of 1280 × 1024 pixels.
What Novitec says:
View more information on Swing3D.
