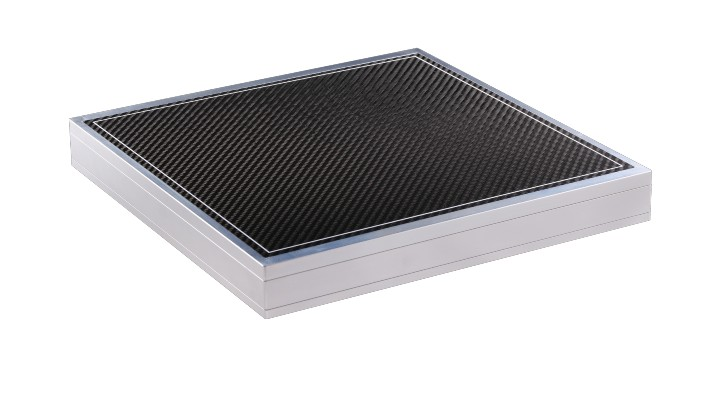

Teledyne Dalsa has introduced the Rad-Xcam 1717, 1723 and 3030 industrial dynamic detectors. These detectors are designed to provide higher frame rates and image quality at low dose, lower lag and increased signal-to-noise ratio. All three models have NBASE-T Ethernet interface, which gives access to such features as adjusting frame rates, single or multiple frame acquisition, and control of advanced timing modes, as well as IGZO technology. They provide maximum frame rates between 44 to 55 fps and pixel sizes at 110.5 µm for the 1717 and 1723 or 146 µm for the 3030. The 3030, 1723 and 1717 have 2048 x 2048, 1536 x 2048, and 1536 x 1536 resolution, respectively. They have footprints of 330 x 338 x 40 mm, 253 x 200 x 40 mm, and 196 x 200 x 40 mm, respectively and weigh 8.9 kg, 3.2 kg and 2.6 kg, respectively. They can operate in 0 – 40 C temperatures and 10 - 80 humidity. The Rad-Xcam series is designed for such applications as industrial automatic inspections.
To Learn More:
Contact: Teledyne Dalsa
Headquarters: Waterloo, Ontario, Canada
Product: Rad-Xcam
Key Features: Up to 55 fps frame rate, IGZO technology, NBASE-T Ethernet interface
What Teledyne Dalsa says: View more information on Rad-Xcam
