GigE cameras from Smartek feature angled lens holder

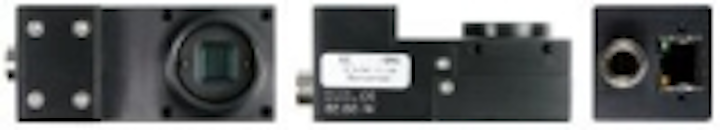

Giganetix S90 cameras feature fully GigE Vision compliant hardware and driver interface, as well as a compact size of 35x35x75 mm. The cameras offer a selection of image sensors, including four Aptina CMOS sensors, 10 Sony CCD image sensors, and 3 Truesense Imaging CCD sensors. In addition, the cameras feature a remote camera heard with standard C-Mount lens adapter, a single mainboard with 65x43mm footprint, Power over Ethernet, an extension port for further connectivity, and a comprehensive C/C++ software development kit. The cameras are designed for use in imaging OEMs and system integrators.
To Learn More:
Contact:Smartek Vision
Headquarters: Cakovec, Croatia
Product: Giganetix S90 cameras
Key Features: Selection of CMOS/CCD image sensors, remote camera head, Power over Ethernet, exposure time programmable from 10µs to 10s.
What Smartek says:
View more information on the Gigantex S90.
View more informatio on other Gigantex models.
