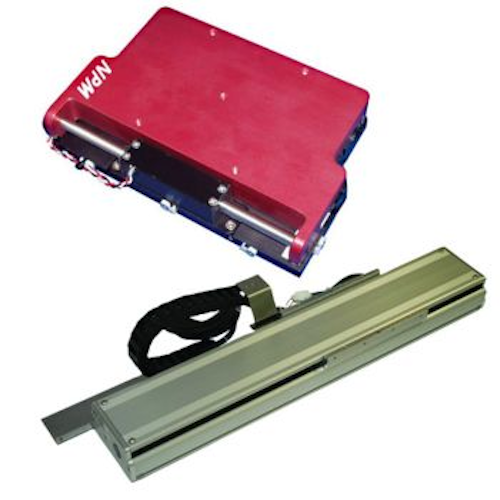

Nippon Pulse stages distributed by Electromate are equipped with integrated bearings and encoders
Nippon Pulse SCR and SLP linear stages are built around the company's ultrahigh-precision Linear Shaft Motor and are equipped with integrated bearings and encoders. The SCR nanopositioning stage offers the speed of servo stages with the accuracy and precision of piezo stages. Built with cross-roller bearings, the linear nanopositioner delivers very straight and flat motion (2.5 micron). The SLP Acculine series is suited to industrial applications requiring precision and high force, generating between 17 N and 970 N of linear force as well as 1-micron resolution from its built-in encoder.
Electromate (distrib.)
Greenville, DE, USA
-- Posted by Vision Systems Design
View More Vision+Automation Products
Locate a vendor or system integrator in our Online Buyer's Guide
---
NEW PRODUCT PRESS RELEASE
Linear Stages for Quick and Easy System Integration
Nippon Pulse has taken much of the work of integrating a linear motor into a system with its SCR and SLP linear stages. Both are built around Nippon Pulse’s Linear Shaft Motor, the first motor designed for the ultra-high precision market. Both the SCR and SLP series stages come with integrated bearings and encoders to reduce cost and simplify integration into your application.
The SCR nanopositioning stage offers the speed of servo stages while also offering the accuracy and precision of piezo stages.
Built with cross-roller bearings, the SCR nanopositioning stage gives you extremely straight and flat motion (2.5 micron).
The SLP Acculine series is ideal for industrial applications requiring both precision and high force. The SLP series offers between 17N and 970N of linear force as well as a resolution of 1μm from its built-in encoder.
Nippon Pulse's SLP Acculine stage series can be seen in this video, which highlights all the components of the stage, including the large, non-critical air gap between the coils and magnets.
Features of Nippon Pulse SCR and SLP Stages
- SCR series features 1 micron resolution
- SCR series offers up to 40N of acceleration force (40 seconds)
- Stroke lengths between 20mm and 300mm on the SCR series
- 2.5 micron straightness and flatness on SCR Nanopositioning series
- SLP maximum acceleration force of 970N (40 seconds)
- SLP series features 1 micron resolution
- SLP available with single or double slider
- Built around Nippon Pulse's Linear Shaft Motor
