BAE Systems announces 12 µm pixel infrared imaging core

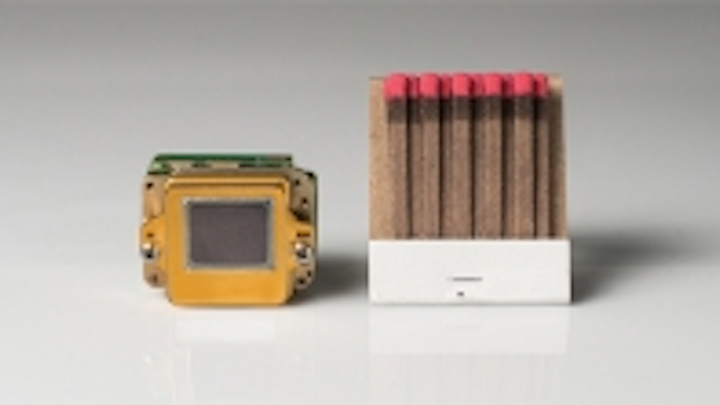

BAE Systems has announced the release of the TWV640 thermal camera core, which features a 640 x 480 vanadium oxide (VOx) microbolometer pixel array and 12 µm x 12 µm pixel size.

June 16, 2014
2 min read

BAE Systems has announced the release of the TWV640 thermal camera core, which features a 640 x 480 vanadium oxide (VOx) microbolometer pixel array and 12 µm x 12 µm pixel size. The TWV640 infrared camera core can operate at 60Hz or 30Hz, features a spectral response region of 7.5 µm to 13.5 µm, and has either a USB or Camera Link interface. In addition, the camera core is equipped with a number of video processing features, including black hot, white hot, edge detector, and color enhanced output modes, manual sharpness adjustment, and other capabilities such as local area contrast enhancement algorithms and histogram equalization. The TWV640 infrared camera core is suitable for use in security and surveillance, firefighting vision systems, process monitoring, automotive cameras, and thermography applications.

To Learn More:

Contact:BAE Systems
Headquarters: Arlington, VA, USA
Product: TWV640 thermal camera core
Key features: 640 x 480 microbolometer VOx pixel array, 12 µm x 12 µm pixel size, spectral response region of 7.5 µm to 13.5 µm.

What BAE Systems says:
View more information on the TWV640 thermal camera core.
