High-speed cameras from Vision Research achieve up to 1,000 fps at 4K resolution

Oct. 9, 2017

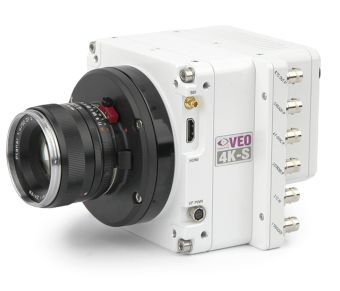

Designed for applications such as scientific research, defense, and media, the Phantom VEO4K camera family from Vision Research captures up to 1,000 fps at 4K and higher at reduced resolutions.

Designed for applications such as scientific research, defense, and media, the Phantom VEO4K camera family fromVision Research captures up to 1,000 fps at 4K and higher at reduced resolutions. The cameras feature a custom 9.4 MPixel, 12-bit CMOS image sensor with a 6.75 µm pixel size that can operate in global shutter (standard) or rolling shutter mode for increased dynamic range. The camera family consists of three models, including the Phantom VEO4K-PL camera for media production, as well as two body styles, allowing users to select the camera that best meets their needs. Additionally, the cameras feature 10Gb Ethernet interface, HDMI and 3G-SDI video outputs, and either 36GB or 72GB of RAM.

To Learn More:

Contact:Vision Research
Headquarters
: Wayne, NJ, USA
Product: Phantom VEO4K high-speed cameras
Key Features: Custom 9.4 MPixel, 12-bit CMOS image sensor with a 6.75 µm pixel size, up to 1,000 fps at 4K, global or rolling shutter, 10Gb Ethernet interface.

What Vision Research says:
View more information on the VEO4K cameras.
