Dichroic filters from Edmund Optics target fluorescence microscopy applications

April 25, 2017

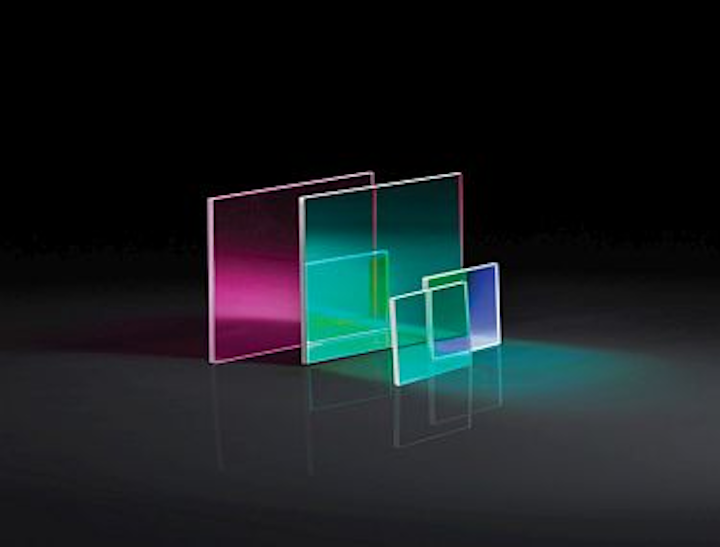

Designed for fluorescence microscopy and high magnification imaging applications, the TECHSPEC High Performance Fluorescence Dichroic Filters from Edmund Optics come standard in two sizes and fit into most common Olympus, Nikon, and Zeiss fluorescence microscopes.

Designed for fluorescence microscopy and high magnification imagingapplications, the TECHSPEC High Performance Fluorescence Dichroic Filters from Edmund Optics come standard in two sizes and fit into most common Olympus, Nikon, and Zeiss fluorescence microscopes. These filters are available in 26 models in cut-on wavelengths from 409nm to 850nm in both 12.5 x 17.6mm and 25.2 x 35.6mm sizes. Additionally, the rectangular, RoHS-compliant filters feature a transmitted wavefront of λ/10 RMS, surface quality of 40-20, surface flatness (P-V) of λ/2, and an angle of incidence of 45°. Additionally, the filters are made from a UV-fused silica substrate and provide an average reflection of greater than 98% and a transmission of greater than 90%.

To Learn More:

Contact: Edmund Optics
Headquarters: Barrington, NJ, USA
Product: TECHSPEC High Performance Fluorescence Dichroic Filters
Key Features: Available in 26 models in cut-on wavelengths from 409nm to 850nm in both 12.5 x 17.6mm and 25.2 x 35.6mm sizes.

What Edmund Optics says:
View more information on TECHSPEC Dichroic Filters.
