CoaXPress camera from ISVI Corp features 25 MPixel global shutter CMOS sensor

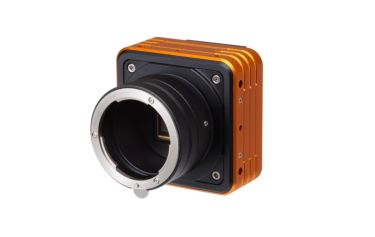

New from ISVI Corp is the IC-X25P-CXP CoaXPress camera, which features a new housing design and a newly-developed sensor positioning design to provide consistently precise sensor alignment. The IC-X25P-CXP is based on the PYTHON 25K, a 5120 x 5120 global shutter CMOS image sensor, which has a 4.5 µm pixel size and can reach a speed of 80 fps at full resolution through CoaXPress CXP6 interface. The camera is available in both color and monochrome with 8 and 10-bit switchable outputs, and also has an LM-Mount, which enables the use of Leica-M and Zeiss ZM lenses with this camera, in addition to F-mount, M72, M58, and M42 lens mount choices. Additionally, the CoaXpress camera is GenICam compliant and has user-definable region of interest, exposure, and strobe output delay, as well as subsampling and a flat-field correction calibration method

To Learn More:

Contact:ISVI Corp.
Headquarters: Oxford, CT, USA
Product: IC-X25P-CXP CoaXPress camera
Key Features: 25 MPixel (26.2) ON Semiconductor PYTHON 25K image sensor, 4.5 µm pixel size, 8/10-bit switchable output, color/monochrome versions, CoaXPress CXP6 interface, 80 fps.

What ISVI Corp. says:
View more information on the camera.
