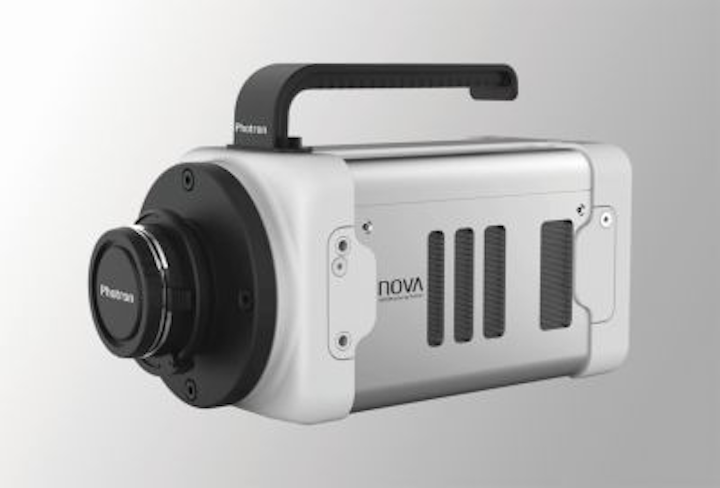

Available in the S12 (12,800 fps), S9 (9,000 fps), and S6 (6,400 fps) models, NOVA high-speed cameras from Photron measures 4.72” (H) x 4.72” (W) x 9.05” (D) and weighs 3.2 kg (7.05 lbs). All NOVA models feature a 1024 x 1024 CMOS image sensor with a 20 µm pixel size as well as global electronic shutter, ISO 40,000 monochrome, ISO 100,000 mono T, ISO 16,000 color, and up to 64 GB internal memory.
Additionally, the cameras offer a GigE interface, Photron FASTCAM Viewer software, and the Photron Device Control software development kit, which allows integration of the camera with user-specific software, and libraries for controlling the camera with a MATLAB or LabView environment. NOVA cameras are compatible with a number of lens formats to allow the use of a Nikon G-Type, C-Mount, and Canon EF lenses.
