How Many Photons Are There in a Lumen?

Editor’s note: Bodkin Design & Engineering (Newton, MA, USA) confronted the issue of controlling motion blur in video imaging while working on a project involving high-speed helicopter blades. However, the idea of choosing the correct exposure for the camera applies to any project involving LED illumination—not just those involving motion, says Andrew Bodkin, the company’s founder. To set up the camera and LEDs correctly, you need to know how many photons are in a lumen of LED flux, he says. Because this information is not available in LED spec sheets, the Bodkin team developed a method to calculate the information and shares the step-by-step approach here.

When designing a machine vision system, it is important to determine if there will be sufficient illumination for a good image. The lights must be selected along with the lenses, the image chip, and the layout of the camera and illuminators. Without sufficient light, even the best machine vision system can fail.

This is particularly critical if the subject is moving rapidly, requiring a short exposure to prevent blurring. There is a trade-off between exposure time and motion blur. The longer the exposure, the better the imagery but the greater the motion blur.

LED lighting has become the standard illumination source. LEDs are rated in lumens, which describe how bright they look to the human eye, not how a camera sees them. In fact, cameras pick up a wider range of wavelengths, which means much of the illumination falls outside the visual sensitivity curve used to define the lumen. There is actually more light in the LED lamp than described by the lumen rating. This works to our advantage for light-starved imagery.

Related: LEDs: The Swiss Army Knives of Machine Vision Illumination

To predict image quality, LED output must be converted into photons per second per wavelength and matched to the camera pixel spectral sensitivity. Since LED specs do not provide this information, it has to be worked out from first principles—a method engineers use to break a problem down into fundamental truths before building a solution.

This article will show how to convert LED ratings from lumens to spectral flux in photons.

Scene illumination is determined from the spotlight datasheets or from modeling.  Depending on lens f-number, pixel size, and object reflectivity, the illumination at the pixel can be calculated. For rapidly moving objects, the question is: What is the shortest exposure time we can use and still have reasonable imagery?

To evaluate this, we need to determine how much the exposure fills the detector well. To determine the well fill of the pixel and the resulting signal-to-noise ratio, the number of detected photons has to be calculated. For incandescent illumination this can be done using a blackbody calculator.  However modern lighting uses LEDs, whose spectral photon flux (the number of photons per second per unit area) is not available on the datasheets.

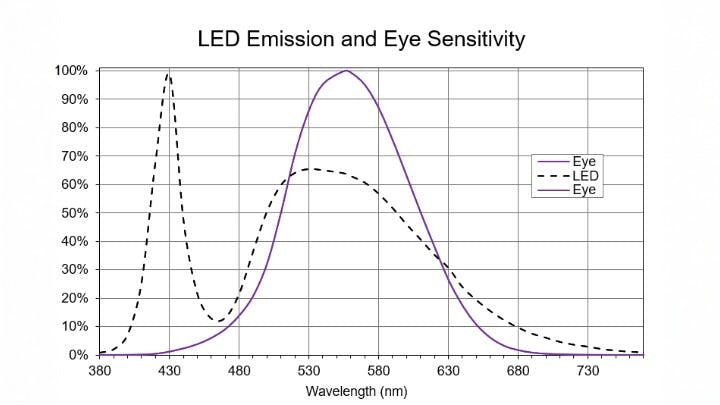

LED manufacturers report the total flux in lumens and the relative spectral power distribution as a normalized curve (Figure 1). We want to derive the scale factor used to normalize the curve from the lumen rating and convert the curve back to watts.

The curve was created by measuring the spectral output of the LED with a spectrometer in watts (P (λ) ), then dividing it by the maximum value (Μ) to give a normalized curve. To characterize the total power from the LED, the illumination is measured with a meter that is fitted with a filter to mimic the spectral sensitivity of the eye and read out in lumens.

To recover the spectral power curve in watts from the relative spectral power curve, we need to find (Μ) the maximum emission value that was used to normalize the curve.

We use a spreadsheet to determine the value of (Μ), and create the power curve of the LED in watts. This is then converted to photons/second with Planck’s constant and the speed of light.

We digitized the curves representing the LED relative spectral power distribution, the eye photopic visual efficiency, and the camera spectral quantum efficiency every 10 nm over the 400 to 750 nm range and entered them into a spreadsheet (Figure 3).

Related: Rugged Machine Vision Lighting Options Weather Harsh Environments

Figure 3 shows the spreadsheet we used to calculate the photon flux from the lumen rating. LEDs can have different phosphors resulting in a different relative spectral power curve, and the image chip can have different QEs. Therefore, new curves will need to be digitized for each design.  Printed curves from the datasheets can be digitized using a free online application. For this particular LED, the total photon rate for 1 lumen flux is 5.9x1015 ph/s. And for this particular image chip, the monochrome net quantum efficiency is 68%, the red is 20%, blue 19% and green 35%.

Related: Effective Lighting Design Strategies for Reliable Machine Vision Applications

To determine the image exposure for the camera, calculate the electrical signal from the pixel. To do that, determine the LED lumen flux on each pixel, convert it to photons/second, multiply by the quantum efficiency curve of the pixel and the exposure time. This will yield the charge in the pixel detector well. From this, the well fill, digitizing counts and signal-to-noise can be calculated. This process is the topic of a future article.

Author's note: I would like to thank Jim Daly, chief scientist at Bodkin Design & Engineering; Adam Norton, optical consultant; and Mike Zollers, senior illumination systems engineer at Synopsys (Sunnyvale, CA, USA) for their support in developing this derivation.
