Engineers at Siam Riso Wood Products (Sarattani, Thailand) have developed an automated vision system that can monitor the quality of particle board using smart cameras from National Instruments Thailand (Bangkok, Thailand).
The company itself manufactures 10,000 particle boards per day and until the deployment of the NI based vision system, these were inspected manually.

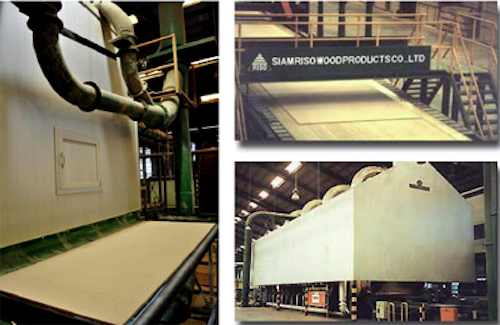

Together with support from engineers at NI Thailand, engineers led by Sarapong Kaney at Siam Riso modified an existing particle board manufacturing from Kvaerner Panel Systems (Hannover, Germany) that was not equipped with machine vision technology.
To do so, they retrofitted the machine with three NI 1762 smart cameras each of which captures three separate areas of the particle board after the surfaces have been polished in the final stages of manufacturing.
The three cameras -- which perform defect detection in parallel -- are interfaced to an S7 PLC from Siemens. If a defect is detected on a particle board by any of the cameras, the PLC is instructed to actuate a sorting mechanism to separate it from the good products.
The system is also able to display the lot number and the percentage yield of good and rejected products to an operator through a man-machine interface.
Developed in three months, the system is now running 24 hours a day, seven days a week. More information is available here.
