Vision + Automation Products
Sensors simplify part inspection

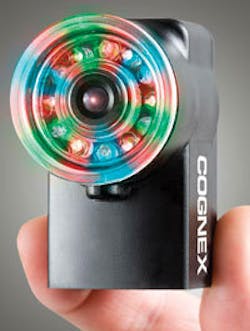

The Checker 200 series sensors are aimed at small, smart, simple sensing applications such as food, beverage, and consumer-product package inspection, and automotive and electronics inspection. They offer built-in lighting, variable working distance, and high-speed inspection capability at rates faster than 6000 parts/min. All Checker 200 series sensors have a rugged IP67 housing and quick disconnect cables, as well as encoder-based part tracking, I/O, and high-speed USB connectivity.
Cognex
Natick, MA, USA
www.cognex.com
Software driver is Vista-compatible
Software driver version 2.40 for uEye cameras now supports the latest Microsoft operating system (32-bit). A new feature is the possibility of flash exposure in free-run mode. This function was previously only available in trigger mode. In free-run mode the camera sensor works autonomously and at maximum speed. While one captured image is being transmitted, the next image is exposed. The functionality is available for all uEye USB cameras, except the UI-1210 and UI-1440 models.
IDS Imaging Development Systems
Obersulm, Germany
www.ids-imaging.de
Hand-held barcode reader is affordable
MAH120 hand-held imager is a lightweight and rugged device that provides fast, flexible, affordable reading of all popular 1- and 2-D barcodes, as well as many other symbologies. Built for cabled point-and-shoot omnidirectional applications, the MAH120 is a low-cost addition to the company’s family of high-performance hand-held barcode readers. Its wide-angle lens captures and decodes all barcode types and symbologies.
Pepperl+Fuchs
Twinsburg, OH, USA
www.am.pepperl-fuchs.com
Cameras make access to digital simpler
Guppy camera models link formerly analog-only interlaced technologies and digital FireWire interfaces and makes the transition from analog- to digital-signal transmission easier. The new interlaced cameras are based on the same platform as other Guppy models and have the same compact form and FireWire 1394a interface. They are equipped with Sony interlaced CCD sensors with 0.25, 0.29, 0.38, or 0.44 Mpixels and are available for black-and-white and color requirements. The range also features two versions with near-infrared 1/2-in. sensors.
Allied Vision Technologies
Stadtroda, Germany
www.alliedvisiontec.com
Tire-inspection system uses lasers
New generation of line laser sensors, EyeCon 2200 Selcom Sensors That See, are specifically designed for sidewall tire final inspection using line laser technology. Profiles are measured thousands of times a second, providing high data density to detect small defects as a tire rotates.
LMI Technologies
Vancouver, BC, Canada
www.sensorsthatsee.com
Software adds options
Vision Components VC4XXX series-compatible software option has been added to the company’s PIATI family of ECC200 Data Matrix decoding solutions. PIATI_SWO-powered products are suited to automatic decoding of Data Matrices that have been machine-marked (laser scribed, laser printed, dotpeened/pinstamped, inkjet printed, electrochemically etched) on wafers/PCBs/substrates; glass lenses; molds and containers; electronic components and carriers; medical/dental devices and instruments; and packaged goods. The software performs identifying, matching, sorting, tracking, or verifying of these products as they move through manufacturing or material handling processes.
The Value Engineering Alliance
Cambridge, MA, USA
www.The-V-E-A.com
16-Mpixel camera is for x-ray imaging
Quad-RO: 4096 for indirect x-ray imaging offers flexibility for demanding applications by delivering a maintenance-free (thermoelectrically cooled) camera in a compact package with better than ±0.1°C temperature precision and FireWire (IEEE 1394a) interface. The design balances quadrants within 0.5% to deliver uniform images. The Quad-RO: 4096 is offered with a front-illuminated, 4096 × 4096-format sensor with 15-µm pixels and 61.44 × 61.44-mm image area. Features include software-selectable independent gains and software-selectable dual speed (1 MHz and 500 kHz).
Princeton Instruments/Acton
Trenton, NJ, USA
www.piacton.com
Four-axis controller is precise
OASIS-4i controller is a PCI-compliant plug-and-play board that controls up to four microstepping motors, allowing precise movement of x-y stages and focus mechanisms (the z axis); the fourth axis controller allows for automation of extra peripheral devices such as filter wheels. OASIS-4i is complete and self-contained. No additional power supplies are required.
Objective Imaging
Kansasville, WI, USA
www.objectiveimaging.com
Sensor performs in harsh settings
PresencePLUS Pro vision sensor now features a compact, metal, IP68-rated camera, with the option of an integrated light or lens cover. The sealed camera performs advanced machine-vision inspections in industrial and washdown environments-anywhere that water, dust, and other contaminants might normally be a problem. The PresencePLUS Pro incorporates a remote camera with a controller that includes a suite of gray-scale tools. Color models also offer the Color Match tool to inspect for a specific color or color range taught to the sensor.
Banner Engineering
Minneapolis, MN, USA
www.bannerengineering.com
Megapixel cameras are sensitive
With 2592 × 1944-pixel resolution and on-board processing, Lumenera Lw570/Lw575 series of megapixel cameras are suitable for industrial imaging applications. CMOS sensor uses a fast rolling shutter that enables frame rates of 60 frames/s at VGA and 7 frames/s at maximum resolution. High sensitivity and a dynamic range of 60 dB ensure high-quality images, even under less favorable lighting conditions, as well as the full color depth of 8 and 12 bits/color channel. Power is supplied via external 5-Vdc/500-mA or the standard USB connector. Several I/O ports are available for synchronisation with external devices.
FRAMOS Electronic Vertriebs
Munich, Germany
www.framos.de
Modules support thermal imaging
CARTHAGE electronic imaging modules are designed and built to comply with current military and aviation quality standards. The modules deliver a processed image stream for a variety of applications. The ruggedized modules are offered as stand-alone units or preintegrated with detector and imaging lens assemblies. Compatible with most commercially available cooled IR sensors, CARTHAGE modules are available in a range of configurations.
Cedip Infrared Systems
Croissy-Beaubourg, France
www.cedip-infrared.com
Camera has Camera Link output
Monochrome 5-Mpixel-camera, the svs625, has resolution of 2456 × 2058 pixels and a frame rate of 12 full images/s. Configuration software adjusts parameters such as gain, offset, or exposure time. Variable operation modes such as free-running or triggered enable user to integrate the camera into specific applications. The optical interface is C-mount. Camera is 50 × 55 × 43 mm.
SVS-VISTEK
Seefeld, Germany
www.svs-vistek.com
GigE camera delivers 2 Mpixels
TM-2040GE offers 2-Mpixel UXGA resolution and software-selectable operation that allows users to choose between dual-tap mode at 34 frames/s or single-tap mode at 17 frames/s. Utilizing a 1-in. Kodak progressive-scan IT CCD sensor, the TM-2040GE produces 12-bit linear images, or 10-bit/8-bit images that are modifiable by a user-defined look-up table for use in difficult lighting situations. All TM-2040GE cameras include image center partial scanning, as well as variable partial scanning. Other features include a PIV mode and a defective-pixel compensation feature.
JAI
Copenhagen, Denmark
www.jai.com
Board supports medical imaging
Vio Analog, newest member of the Vio family of boards for video capture and display, delivers broadcast video to simulation, training, and medical imaging markets. It is a single-platform capture card that supports analog HD/SD input and output. Features include low-latency video output (synchronized to the video input), 128-bit Mbyte on-board memory, support for 20-bit video, automatic detection of the video source, and graphics overlay composition. It uses an X4 PCI Express host interface, enabling it to stream high-definition video to the host PC for archiving or from the host PC for playback.
Matrox Imaging
Dorval, QC, Canada
www.matrox.com/imaging
Camera captures movement
SU320KTS family of snapshot video cameras includes the SU320KTS-1.7RT InGaAs SWIR camera, which provides high response from 0.9 to 1.7 µm, and the SU320KTSVis-1.7RT Visible-InGaAs SWIR camera, which features extended wavelength response into the visible from 0.4 to 1.7 µm. Snapshot feature provides image capture from pulsed events or moving objects within one frame. Low power and lightweight, the cameras are for machine vision, environmental, industrial, and military imaging tasks. The cameras provide simultaneous 12-bit Camera Link digital and EIA-170 analog outputs.
SUI/part of Goodrich
Princeton, NJ, USA
www.isr.goodrich.com/sui
Camera supports 3-D imaging
Bumblebee XB3 stereo vision camera, a three-sensor multibaseline IEEE-1394b stereo camera, delivers 3-D images and complete stereo-processing support. Incorporating three Sony 1/3-in. progressive-scan CCDs, with 12- and 24-cm baselines for stereo processing, the Bumblebee XB3 provides 1280 × 960 images at 16 frames/s. It transmits images to the host PC via an IEEE-1394b interface, delivers full field-of-view depth measurements from a single image set, and is precalibrated for lens distortion and camera misalignments.
Point Grey Research
Vancouver, BC, Canada
www.ptgrey.com
Cameras feature PoCL
CleverDragon industrial-grade cameras are capable of up to 90-frames/s all-pixel-data readout at VGA resolution. Featuring Power over Camera Link (PoCL) technology to allow transfer of image data, power, and control signals on a single cable, the cameras are optimized for semiconductor, packaging, and other high-speed detailed inspection tasks. Two models are available in resolutions of XGA (1024 × 768) or VGA (640 × 480). Equipped with a full-frame shutter, the cameras read data three times faster than conventional CCD cameras, while providing vertical resolution without degradation. Both versions of the CleverDragon have a random trigger shutter.
Toshiba Teli
Irvine, CA, USA
www.toshiba-teli.com
Devices give more resolution
Housed in compact, DIN-mountable enclosures, VA3X products provide quick user setup, factory-friendly wiring, and support for one or two cameras with choice of sensor resolution. Available in two versions, the VA30 comes with easy-to-use iNspect software, while the VA31 version additionally includes Sherlock machine-vision software. The VA30 comes with software preinstalled on the device, eliminating version control problems. Alternatively, for users who prefer in-place setup, the VA31 offers the ability to connect keyboard, mouse, and monitor directly to the unit.
DALSA IPD
Billerica, MA, USA
www.goipd.com
GigE Vision camera catches events
GC750 Gigabit Ethernet camera connects directly to the Gigabit Ethernet port on the host computer and does not require a frame grabber. The result is a low-cost alternative to analog-camera/frame-grabber options. The GC750 incorporates a progressive-scan CMOS sensor with global electronic shutter suitable for capturing high-speed motion events. It runs 60 frames/s at 752 × 480-pixel resolution over a GigE Vision-compliant Gigabit Ethernet interface. The camera is available in both monochrome and color models supporting both 8- and 10-bit formats
Prosilica
Burnaby, BC, Canada
www.prosilica.com
Camera monitors packaging line
InLine system captures line stoppages and automatically downloads images via Gigabit Ethernet. InLine cameras operate in conjunction with machine-vision inspection systems. When the machine vision system senses and rejects a bad item, the InLine camera is triggered to automatically download the images to a preselected computer on the network. Analysis of the high-speed images show the line operator what caused the reject and appropriate adjustments can be made to the production line.
Fastec
San Diego, CA, USA
www.fastecimaging.com
SOM is powered by Intel processors
System-on-module, SOM-5782, an embedded PCI Express SOM board powered by the Intel Core 2 Duo processors, offers PCI Express x16 support and provides a special heat-spreader solution that reduces thermal design effort. SOM-5782 expands upon existing COM-Express series in a form factor of 95 × 125 mm. SOM-5782 comes with advanced I/O capabilities that include 10/100/1000Base-T Ethernet, 2 × SATA, 1 × EIDE, 8 × USB2.0 ports, and high-definition audio. The COM-Express series is backwardly compatible with existing hardware and software systems.
Advantech
Irvine, CA, USA
www.advantech.com
Tracking device mounts easily
Leica T-Mac device is a Tracker-Machine wireless control sensor that can be mounted on moving robots, machines, or parts whose position(s) need to be monitored in 6-DoF space. The Leica T-Mac works in tandem with the Leica LTD840, LTD709, and LTD706 laser trackers, as well as the Leica LTD800 and LTD700 laser trackers. The Leica T-Mac operates similarly to the wireless Leica T-Probe, but is designed without a contact probe or tip. The Leica T-Mac features a special housing for easy installation, with additional reflector nests for calibration and easy orientation. It is insensitive to environmental light.
Leica Geosystem
Miamisburg, OH, USA
www.portablecmm.us
Lenses resist harsh environments
MML-ST series machine-vision lenses are designed to exhibit the highest-level optical performance when combined with 410,000-pixel cameras. They are available in five working distances-65, 110, 150, 200, and 300 mm-and are designed to enable simple and rapid mounting on manufacturing equipment. MMLs are telecentric lenses, which maintain a constant view angle to the subject by keeping the optical ray paths parallel to each other. All MMLs are packaged in compact, low mass designs, assembled to endure the rigors of the most demanding machine vision and industrial inspection applications.
Moritex Europe
Cambridge, UK
www.moritex.com
Mezzanine card is flexible
GX-AMC (GXAM) is the company’s FPGA-only board based on Altera line of high-density FPGAs. This advanced mezzanine card (AMC) uses the Altera Stratix II GX FPGA to provide flexibility for the development and deployment of a variety of systems, including wireless infrastructure. Every AMC port aside from port 0 is connected to the Stratix II GX. To extend the inherent flexibility of AMC, the GXAM includes a front-panel mezzanine site with 76 LVDS pairs and four SerDes, further enabling designers to adapt the GXAM to their changing requirements.
BittWare
Concord, NH, USA
www.bittware.com
Stage is robust
The ATS115 is hard-cover, side-sealed stage design for medium-performance applications. The robust aluminum cover is hard-coated for scratch resistance. The side seals keep dirt and particulates out of the stage, protecting the bearing surfaces from contamination and increasing stage bearing life. Vertical orientation of the seals easily deflects debris away from the stage and is superior to top-seal designs that can collect contaminants resulting in the eventual failure and replacement of the sealing mechanism.
Aerotech
Pittsburgh, PA, USA
www.aerotech.com
VTRAC pinpoints defects
VTRAC intelligent machine-vision software is an enhancement in the company’s Genius and KromaKing inspection systems. VTRAC enables the company’s systems to learn how each part or feature is made and correlate it to the machine performing the job upstream. While automatically performing its tracking and trending functions, when the system detects a problem, it immediately identifies the point-of-origin machine. It can then instantly alert or page personnel, send notification to a device, display it on a marquee, and/or shut down the line. By eliminating costly search and guesswork time, VTRAC helps to achieve spoilage reduction.
Applied Vision
Akron, OH, USA
www.appliedvision.com
Couplers optimize image transfer
Optem M2 APO couplers are designed to optimize image transfer to research-grade cameras to allow detection of subtle color distinctions and specimen distinctions. Features include apochromatic optics that provide high-resolution imaging across the visible spectrum, telecentric design to 5˚, minimum color spread, and uniform illumination across the entire field. Robust optical design exceeds the Nyquist sampling of larger-chip cameras, providing clear, sharp imagery over the entire field of view. Broadband antireflection coating delivers maximum photon transmission in low-light applications and fluorescence imaging.
Qioptiq Imaging Solutions
Fairport, NY, USA
www.qioptiqimaging.com
Bus extender simplifies testing
PCIeEXT-16 PCI Express bus extender board, when installed in any PCI Express x16 motherboard socket, facilitates testing and debugging of boards of all data widths. Lubricated gold-plated contacts in the top connector on the PCIeEXT-16 bus extender board withstand thousands of insertions, facilitating heavy production testing of PCI Express boards. Additionally, the labeled bus lines enable the PCIeEXT-16 to be used in engineering debugging setups.
Furaxa
Orinda, CA, USA
www.furaxa.com
Reflex-free lenses are sensitive
Reflex-free lenses for front-view camera systems and night-vision applications are of multiglass-element designs, mounted in durably constructed metal housings with standard C-mount mounting thread, with fixed focusing and iris diaphragms, and available in focal lengths (mm) and speeds (f/) of 6.7/2.1, 9.6/2.3, and 17/2.3. The lenses provide edge-to-edge high resolution, high-light sensitivity, high relative illumination of >90% and low veiling glare of <1%, distortion-free images, and are color-corrected for wavelengths from 400 to 900 nm.
Docter Optics
Neustadt, Germany
www.doctoroptics.com
Lenses enhance surveillance
Day/night IR lenses are engineered to work with IR illuminators and true day/night cameras that use a retractable IR cut filter. They eliminate the focus shift that often occurs with conventional lenses at night, providing optimum sharpness for 24-hour surveillance. The 8.5-40-mm IR varifocal lens features an extended telephoto range while maintaining a maximum aperture of f/1.3. The all-purpose 2.8-12-mm IR varifocal lens provides the proper field of view for almost all general surveillance applications. The 2.9-8.2-mm IR varifocal lens features aspherical optics to provide a superfast f/1.0 maximum aperture for low-light performance. All Computar IR varifocals are available in manual iris, dc auto iris, or video auto iris versions.
CBC (America)
Commack, NY, USA
www.cbcamerica.com
Kit accelerates DSP development
DSP development kit, the V5+C, includes the latest-generation Impulse C-to-VHDL compiler tools and a PMC module based on the Xilinx Virtex-5 FPGA and allows military and industrial system developers to hardware-accelerate DSP algorithms and quickly prototype on FPGA within an ANSI C environment. Users can expect to achieve 10X acceleration over their existing microprocessor-based solutions. The V5+C kit includes a PMC-FPGA05 on a PCI-X carrier card along with the Impulse C tools and PSP.
VMETRO
Houston, TX, USA
www.vmetro.com
Digital camera is small
The Pearl Series of IMI cameras uses Sony CCD and Micron CMOS sensors in resolutions from VGA to 3 Mpixels. The housing is 29 × 29 × 39 mm with a trigger control and FireWire lock-screw connector. Monochrome and color versions record frames from 1 μs to 65 s with a horizontal and vertical binning mode at 1 x 2 and 2 x 2. Autosync and one-shot and multishot capability are supported.
imi
San Diego, CA, USA
www.imi-tech.com
DaVinci processors provide path
Two new DaVinci-technology-based digital signal processors (DSPs) for multichannel video security and infrastructure applications are based on the company’s TMS320C64x+DSP core. The TMS320DM647 and TMS320DM648 DSPs provide a seamless migration path for existing video-processing applications based on the TMS320DM642. The C64x+core provides 20% better cycle performance, 20% to 30% higher code density, twice as many 16-bit MMACs per cycle, four times the EDMA bandwidth, and is 100% code compatible with the C64x core. The DM648’s increase in clock speed and faster H.264 processing due to the integrated video and imaging coprocessor increases performance at almost the same price as the DM642.
Texas Instruments
Dallas, TX, USA
www.ti.com
CCD camera gives high resolution
SF370 Day/Night color CCD camera is a high-resolution CS/C-mount color camera with 1/3-in. color CCD pick-up device. It reproduces images with resolution of 540 TVL and provides minimum illumination as low as 0.05 lux/f/1.0 (color) and 0.01 lux/f/1.0 (B/W). It is equipped with an automatic switching IR-cut filter producing precise color image under natural light and high quality monochrome images in low light or no light conditions. Features include an electronic shutter speed of 1/50 to 1/100,000 s, auto iris, backlight compensation, auto white balance, and on/off switchable AGC. It is available with PAL and NTSC models.
TeleEye Group
www.teleEye.com
Hong Kong, PRC
