Sunpower's constant current power supply drives large-scale LED lighting installations
PRESS RELEASE

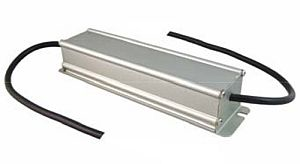

Sunpower’s rugged new PLEC-035S035DT power supply provides up to 100 VDC output at 350 mA. Its constant current capability makes it ideal for driving large LED lighting arrays. This 35 W supply automatically delivers a consistent, optimum current into a series string of any length from 9 to 28 LED lamps. Parallel LED strings can also be added, subject to the total output current capacity of the power supply. LED brightness can be set by a dimming control using a potentiometer or 0–10 Vdc input signal.
The PLEC unit’s input voltage range of 90 -305 Vac is suitable for use in US and world-wide industrial installations, including those using 277 Vac. Its high efficiency of up to 88%, high input power factor of up to 0.99 and potted interior allow cool running operation with a service life typically 2 – 4 times greater than normal products. It is highly reliable and rugged, with an MTBF of up to 541,000 hours, IP 67 protection from dust and water ingress, lightning protection and an operating temperature range of -35 to +70°C. The PLEC-035S035DT also has over voltage, short circuit and overload protection. These protection modes allow the power supply to recover automatically once the fault condition is removed. Comprehensive certification includes EN 61347, UL and CAN/CSA safety standards, and EMC compliance to EN 55015, EN 61000 and EN 61547. The unit is surge tested to 4 kV.
The PLEC-035S035DT is just one member of Sunpower’s PLEC-035SxxxDT Series, which gives professional LED lighting designers and installers a wide choice of DC output voltage and current configurations. The series comprises nine constant current 35 W models with output currents ranging from 2900 mA to 350 mA, and output voltages from 12 to 100 Vdc. All models can be specified without the dimming function if so desired. Users can choose the higher output current models for predominantly parallel LED lamp arrays, or the higher output voltage models for predominantly serial LED lamp strings.
Applications for the PLEC-035SxxxDT Series include solid state lighting, moving signs, backlighting, LED-based decorative lighting, LED-based architectural lighting, LED stage and theatre lighting and LED electronic displays.
About Sunpower
Sunpower UK is the UK arm of a Taiwanese manufacturer that also enjoys extremely strong bonds with other, highly skilled factories and engineers in Taiwan and China. The company delivers a wide range of standard, custom and bespoke power supplies to businesses and organisations across the UK.
These industrial and commercial power products include DIN rail power supplies, industrial battery chargers, marine power supplies, ac adapters and plugtops, and sine wave inverters. They are used in rugged, data storage, medical grade, laboratory, EPOS and many other applications. Sunpower’s engineers are highly experienced in producing custom design power supplies and their value added service is focused on giving customers ‘ready to go’ products that resolve all their power supply needs.
Sunpower UK Ltd's Quality Management System is BS-EN-ISO 9001:2000 certified; its factories are also approved to both ISO-9001 and ISO-14001. The company has been ISO certified since August 1997.
