Eight Cameras, One Slot, Maximum Performance

The Coaxlink Octo is our 8-connection CXP-6 frame grabber. The camera data transfer rate is 5 GByte/s. It comes with a PCIe Gen 3 x8 bus offering a peak delivery bandwidth of 7.8 GByte/s. The effective delivery bandwidth is 6.7 GByte/s. Coaxlink Octo is multi-camera applications, with support for up to eight cameras on a single frame grabber/single slot. Successful Coaxlink applications include 3D AOI, FPD inspection, printing inspection and in-vehicle video transfer.
March 5, 2019
Euresys
Euresys

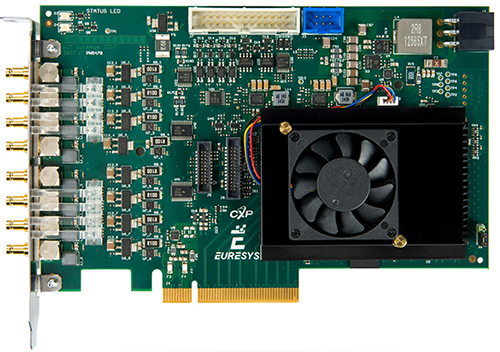

1903eur3 Fig1

The camera data transfer rate of the Coaxlink Octo is 5 GByte/s.

It comes with a PCIe Gen 3 x8 bus offering a peak delivery bandwidth of 7.8 GByte/s.

The effective delivery bandwidth is 6.7 GByte/s.

It is also compatible with the Memento Event Logging Tool.

MULTI-CAMERA APPLICATIONS

1903eur3 Fig2

The main target for the new Coaxlink Octo is multi-camera applications, with support for up to eight cameras on a single frame grabber/single slot.

Successful Coaxlink applications include 3D AOI, FPD inspection, printing inspection and in-vehicle video transfer.

Click here for more info
